Concrete Block Mould

Concrete block forms used in concrete block production line

Concrete Block Mould
  • Concrete Block Mould
  • Concrete Block Mould
  • Concrete Block Mould
  • Concrete Block Mould

    • Concrete Block Mould

    Concrete block forms used in concrete block production line

    Block moulds are containers used to store and stabilize mixtures of cement, sand, and other raw materials. They are available in rectangular and square concrete block moulds and primarily consist of a mould frame and base plate. These moulds are essential for pouring raw materials, offering standard dimensions, resistance to deformation, and leak-proof construction. Made from high-quality steel, they are durable and easy to clean. They are widely used in the production of building materials, particularly in the concrete block manufacturing process.

    Features
    • High durability: made from high-quality steel, resistant to deformation.
    • Flexible sizes: customizable to different specifications.
    • Excellent sealing: Leak-proof and long-lasting.
    Request a Quote
    Square Concrete Block Moulds

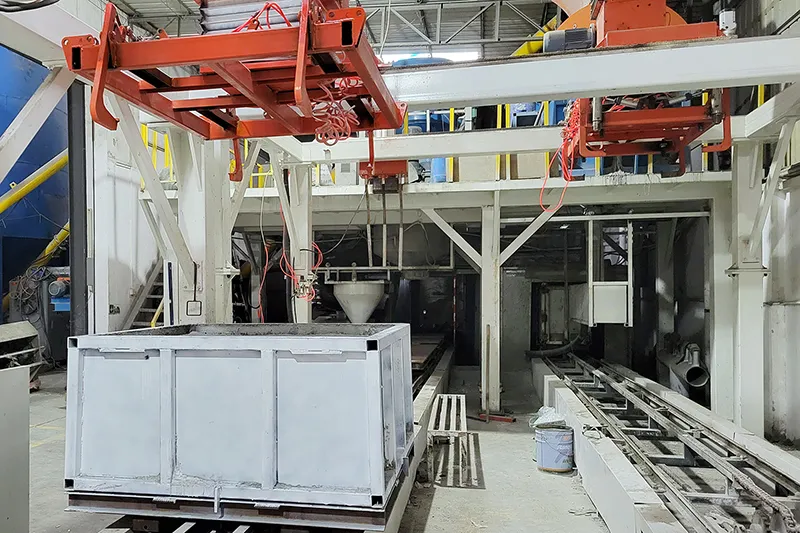

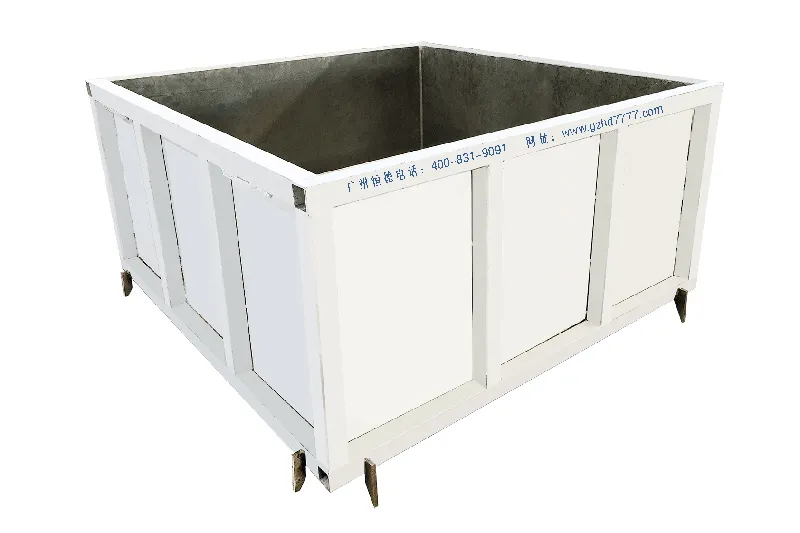

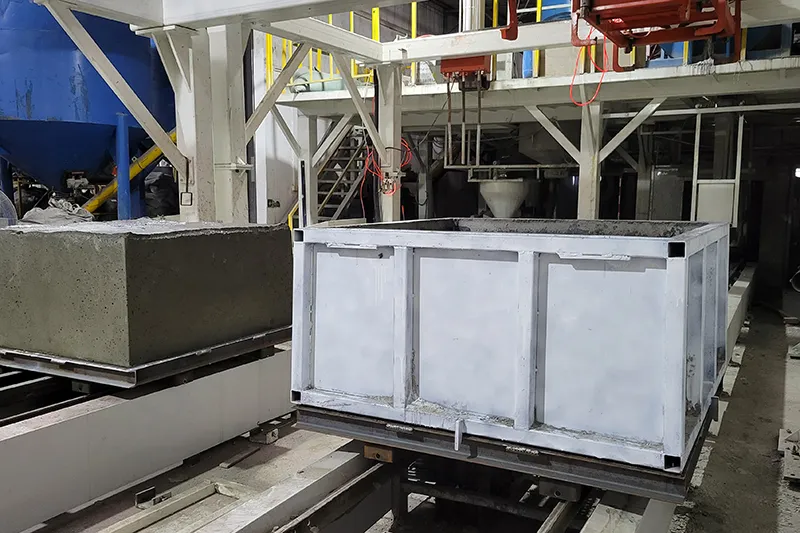

    Square Block Mould, 0.6m Height
  • Square Block Mould, 0.6m Height
  • Square Block Mould, 0.6m Height
  • Square Block Mould, 0.6m Height
    • Square Block Mould, 0.6m Height

    The 0.6m height square block mould is a standard size widely used in the lightweight concrete block and wall panel production industry. It is a container used for pouring concrete materials. This mould is suitable for small-scale production capacities and can be used for the production of aerated concrete, foamed concrete, polystyrene concrete, and lightweight ceramist concrete blocks.

    Specifications

    • Model: HDMJ-003
    • Dimensions (L×W×H): 1.2×1.2×0.6m
    • Capacity: 0.86m³

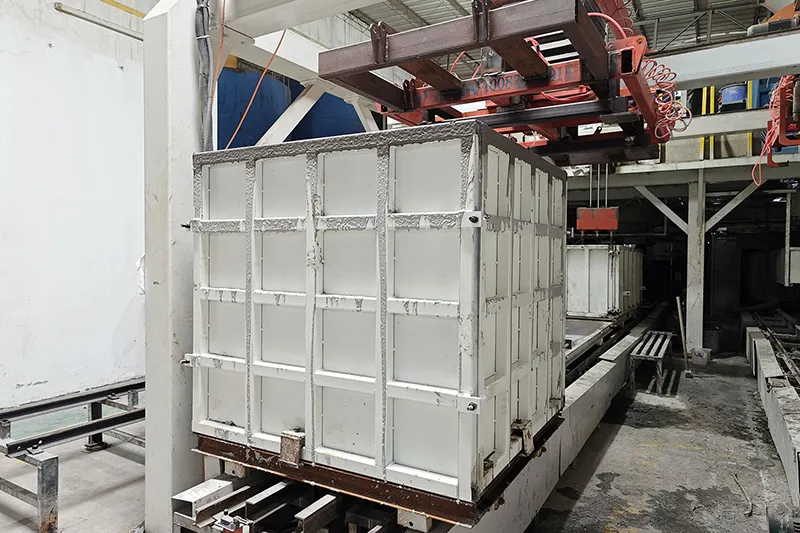

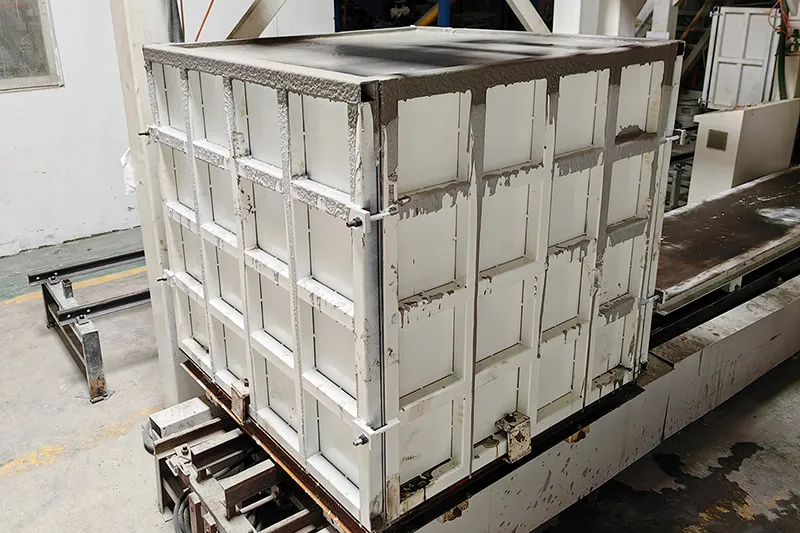

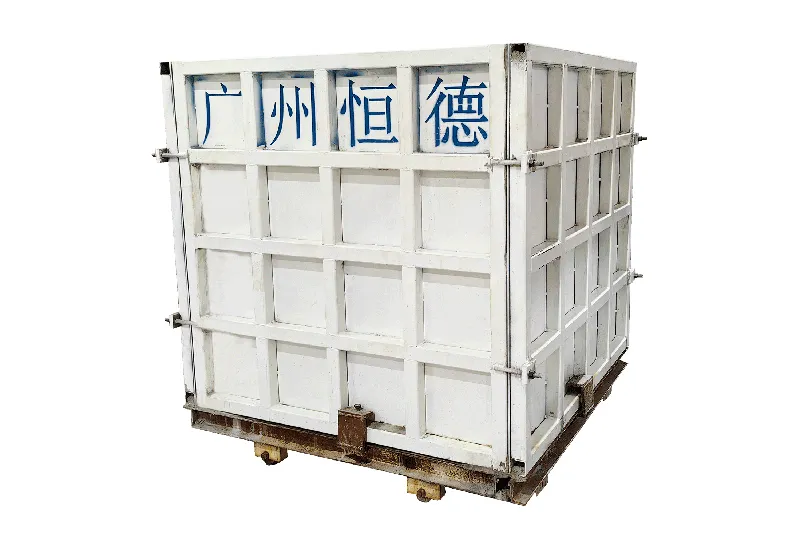

    Square Block Mould, 1.2m Height
  • Square Block Mould, 1.2m Height
  • Square Block Mould, 1.2m Height
  • Square Block Mould, 1.2m Height
    • Square Block Mould, 1.2m Height

    The new 1.2m height square block mould has twice the capacity of the standard square mould, offering lower costs and reduced mould quantity. The 1.2m height square block mould is suitable for medium to small-scale production capacities and can be used for the production of polystyrene foamed concrete blocks.

    Specifications

    • Model: HDMJ-004
    • Dimensions (L×W×H): 1.2×1.2×1.2m
    • Capacity: 1.72m³
    Rectangular Concrete Block Moulds

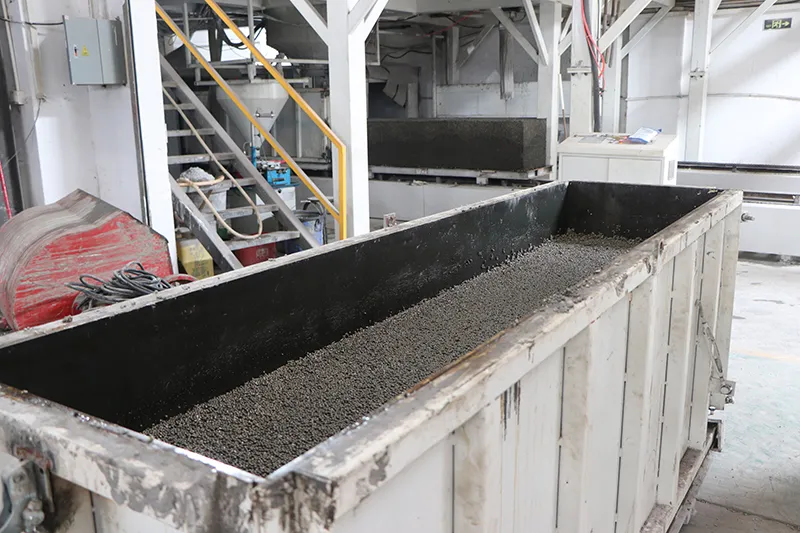

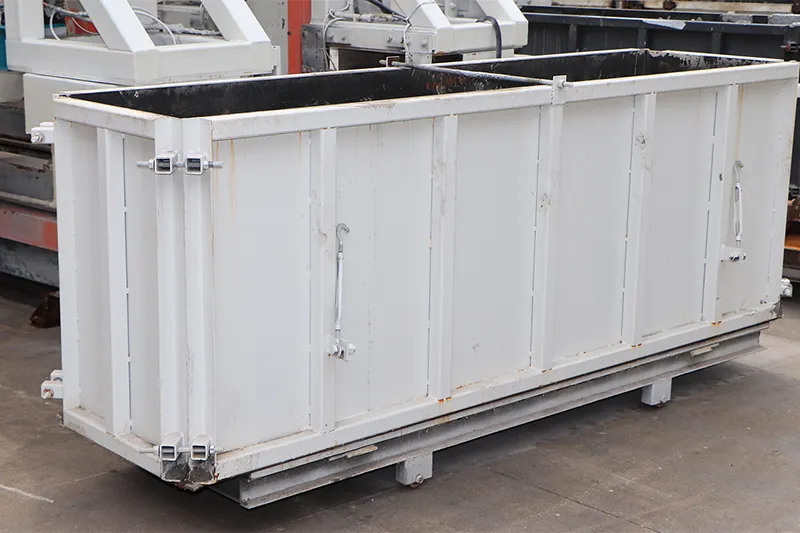

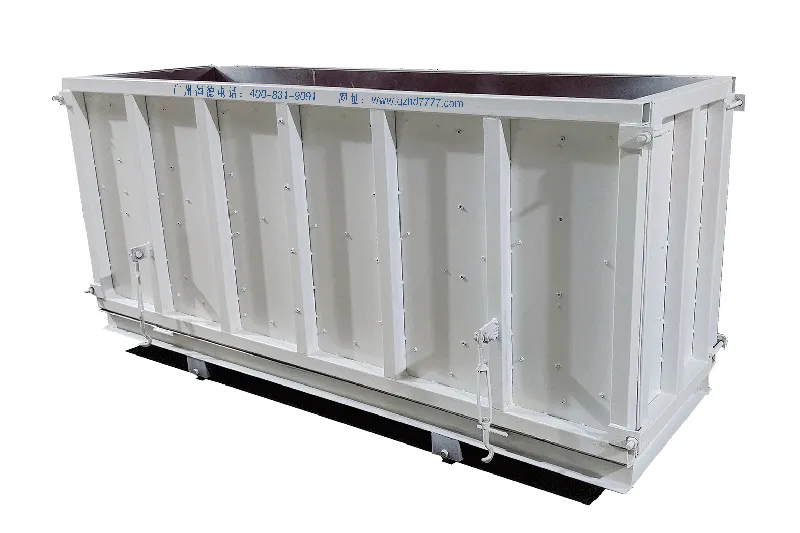

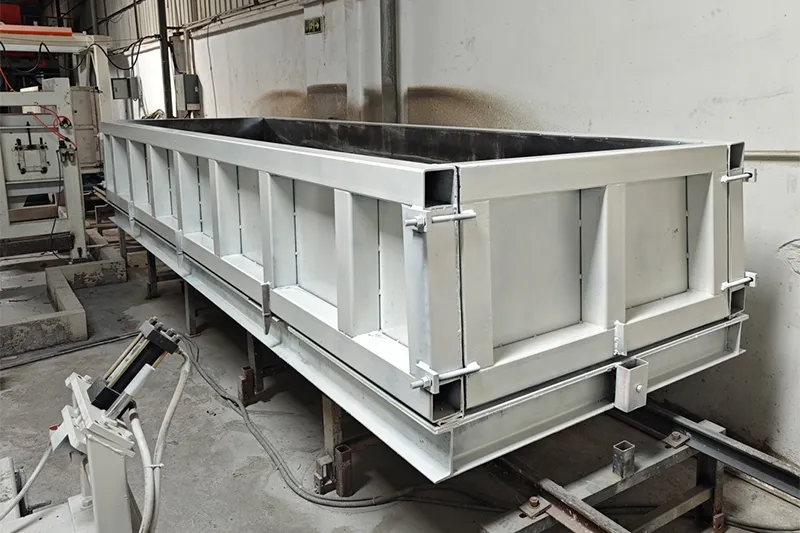

    Rectangular Block Mould, 3m Length
  • Rectangular Block Mould, 3m Length
  • Rectangular Block Mould, 3m Length
  • Rectangular Block Mould, 3m Length
    • Rectangular Block Mould, 3m Length

    The 3.0m length rectangular block mould is suitable for medium to small-scale production capacities. It can be used for the production of non-autoclaved aerated concrete (NAAC), foamed concrete blocks, EPS foamed concrete blocks, and ceramist foamed concrete blocks and wall panels.

    Specifications

    • Model: HDMJ-002
    • Dimensions (L×W×H): 3×0.6×0.9m
    • Capacity: 1.7m³

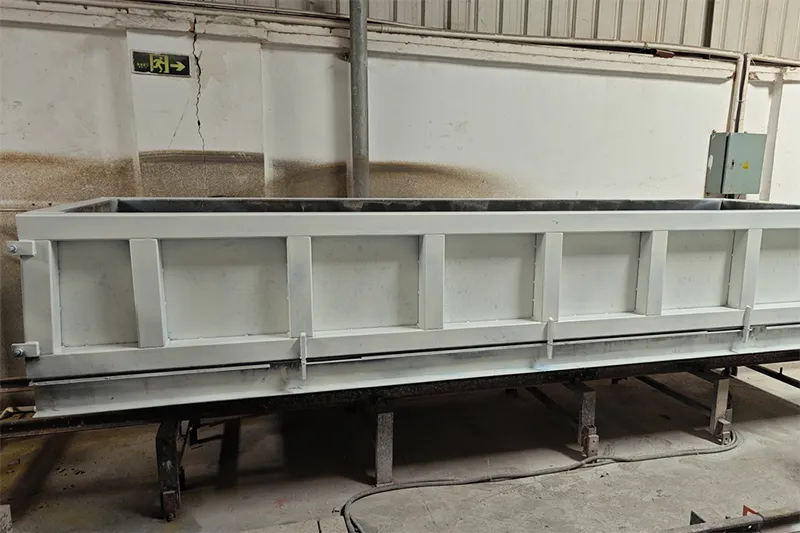

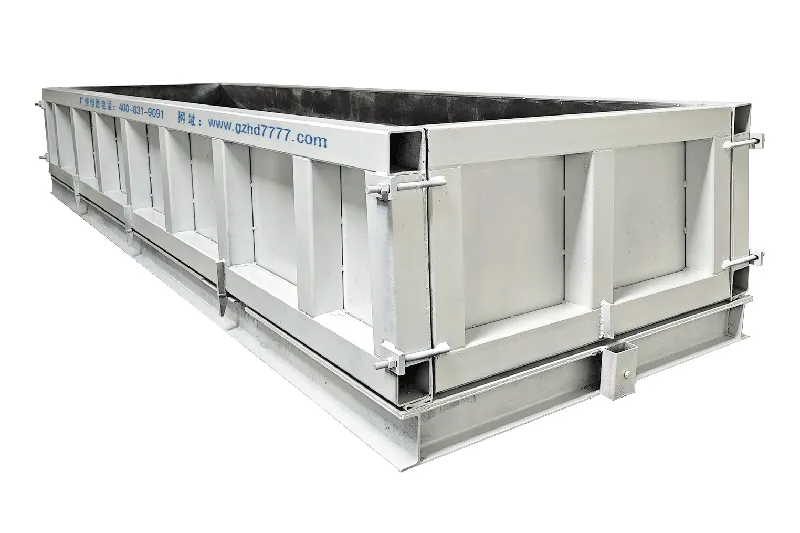

    Rectangular Block Mould, 4.2m Length
  • Rectangular Block Mould, 4.2m Length
  • Rectangular Block Mould, 4.2m Length
  • Rectangular Block Mould, 4.2m Length
    • Rectangular Block Mould, 4.2m Length

    The 4.2m length rectangular block mould is suitable for large-scale production capacities. It can be used for the production of non-autoclaved aerated concrete (NAAC), foamed concrete blocks, EPS foamed concrete blocks, and ceramsite foamed concrete blocks and wall panels.

    Specifications

    • Model: HDMJ-005
    • Dimensions (L×W×H): 4.2×1.2×0.6m
    • Capacity: 3m³
    Machines in the Concrete Block Production Lines
    Our Solutions for Customers' Concrete Projects

    Our company has successfully completed over 100 projects worldwide, showcasing our expertise in producing concrete blocks, CLC aerated blocks, wall panels, and insulation panels. Our case studies highlight successful implementations and innovative raw material solutions for a variety of clients.

    Why Us
    • Extensive project experience: our company has undertaken over a hundred construction projects both domestically and internationally.
    • Leading technological advantage: we established technical collaborations with German LUCA, German KENA, British CDS, and British TAMCK.
    • Comprehensive solutions: We integrate research and development, design, production, and sales to offer turnkey solutions.
    • Largest wall panel cutting system: We have developed the world's largest wall panel cutting system, capable of cutting 6-8 cubic meters in a single operation.
