We offer automatic lines for lightweight concrete production with daily capacities up to 50m³
  • 50m³/day Lightweight Concrete Production Line (Simplified)

The 50m³/day lightweight concrete production line is equipped with core components including a foam generator, feeding and dosing system, belt conveyor, and a combined horizontal and vertical cutting machine. Designed for small-scale production, it features simple operation and is easy to master. It requires approximately 500 m² of floor space, which can be adjusted flexibly based on output needs.

The lightweight concrete production line can produce AAC blocks, self-insulating blocks, and other lightweight concrete products with high dimensional precision maintaining a tolerance of ±1mm. With a relatively low investment threshold, the system can be upgraded later by adding key equipment to meet increased production demands and reduce labor costs. Only 3 to 5 workers are needed to operate the entire system, delivering a daily output of up to 50 cubic meters. Get in touch today to configure your lightweight concrete production line for efficient, scalable manufacturing.

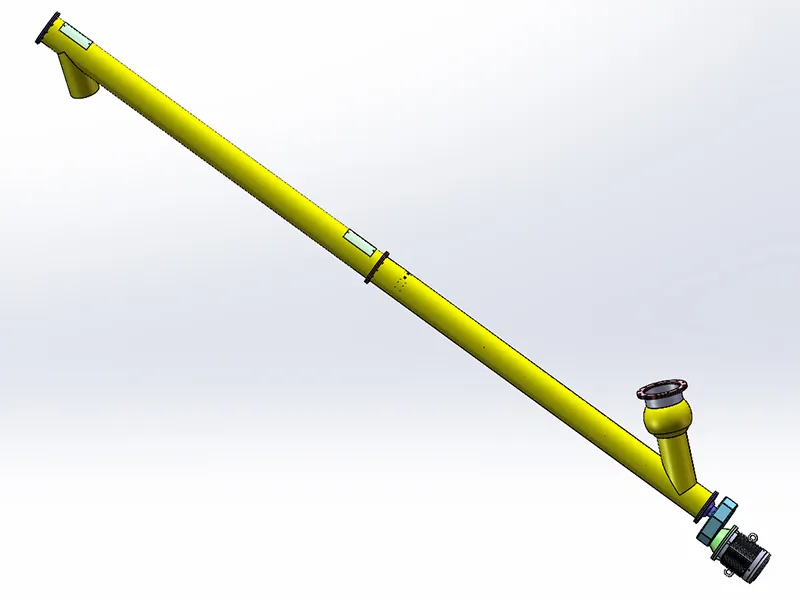

  • Screw feederScrew feeder

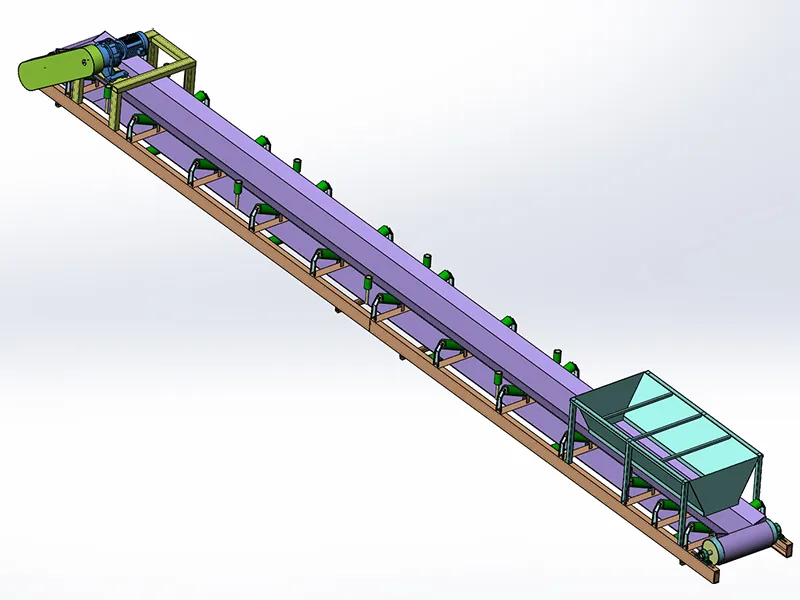

  • Belt conveyorBelt conveyor

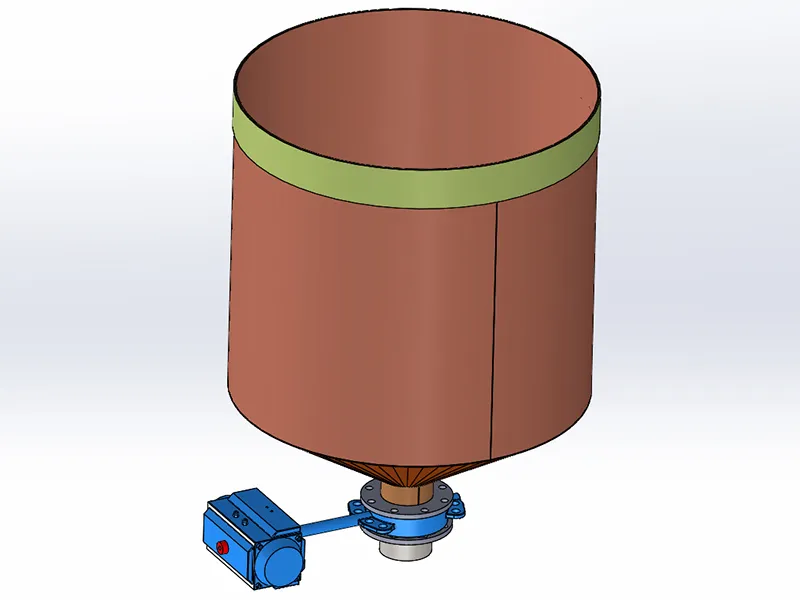

  • Powder dosing and weighing systemPowder dosing and weighing system
  • Water dosing systemWater dosing system

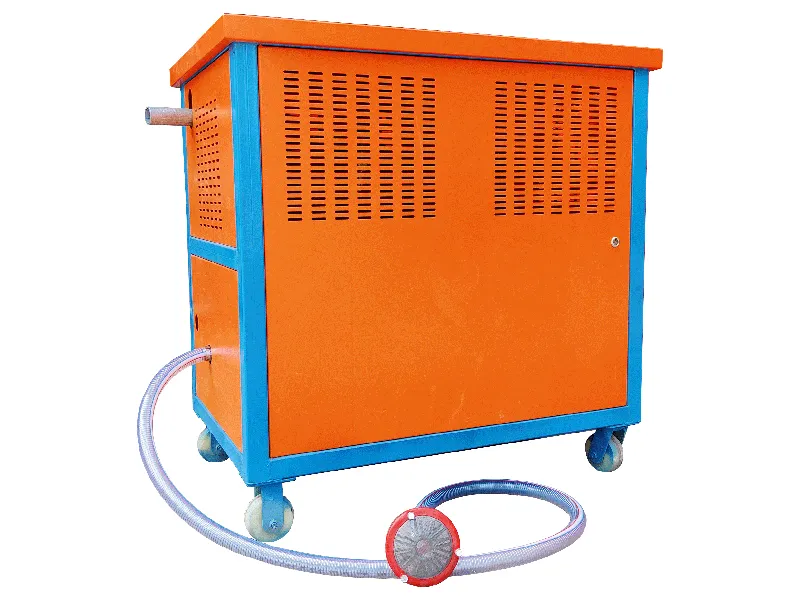

  • Foam generatorFoam generator

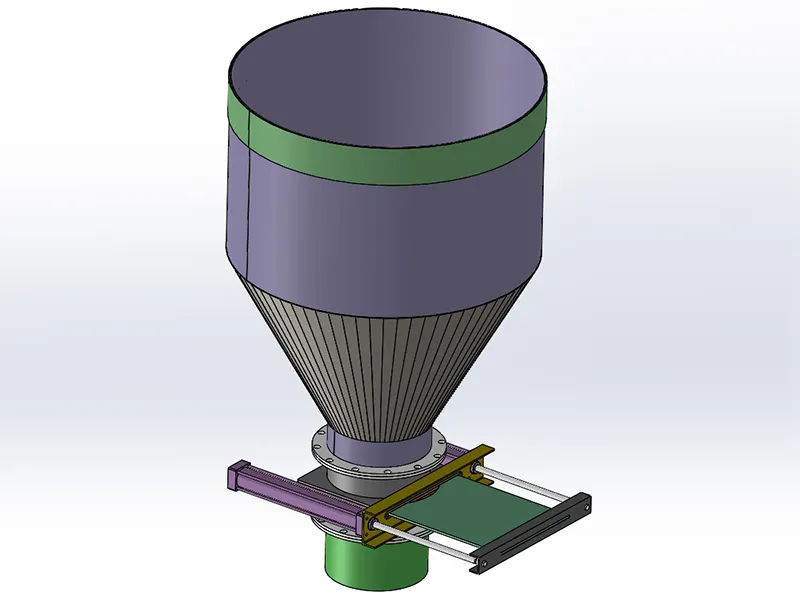

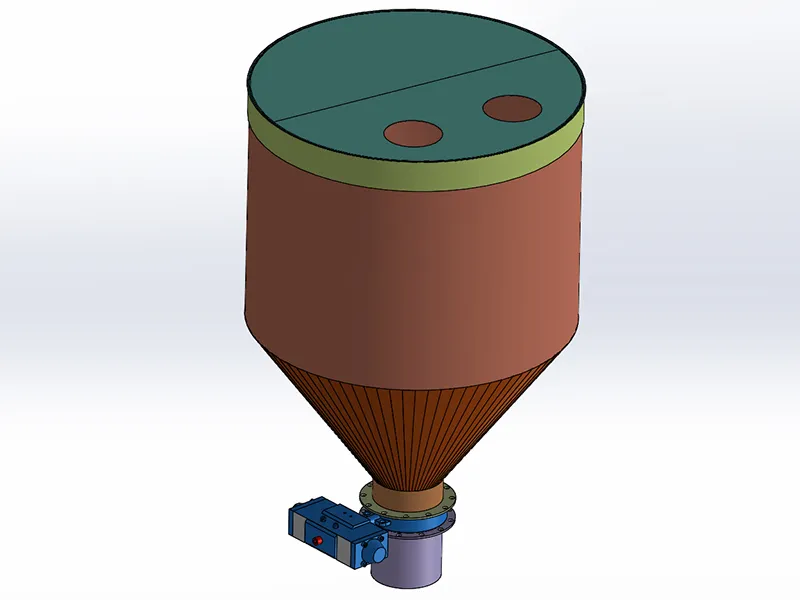

  • Dosing hopperDosing hopper

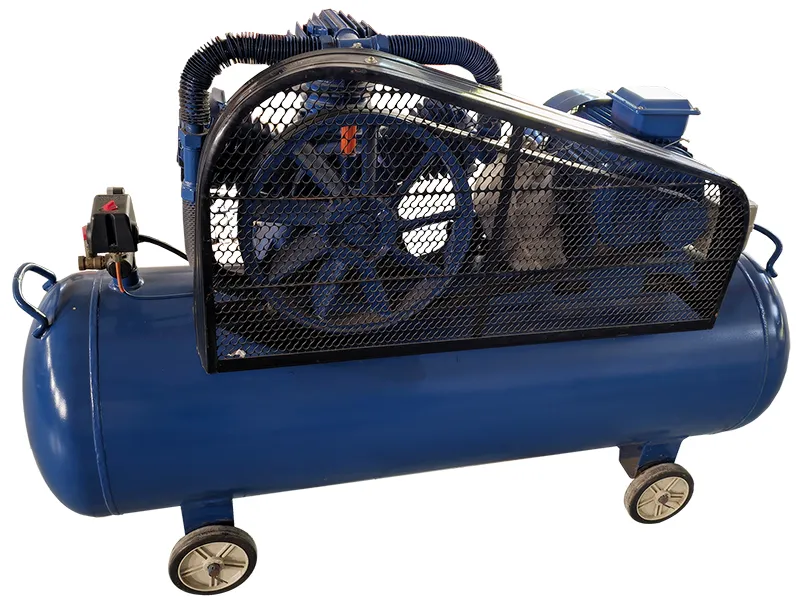

  • Piston air compressorPiston air compressor

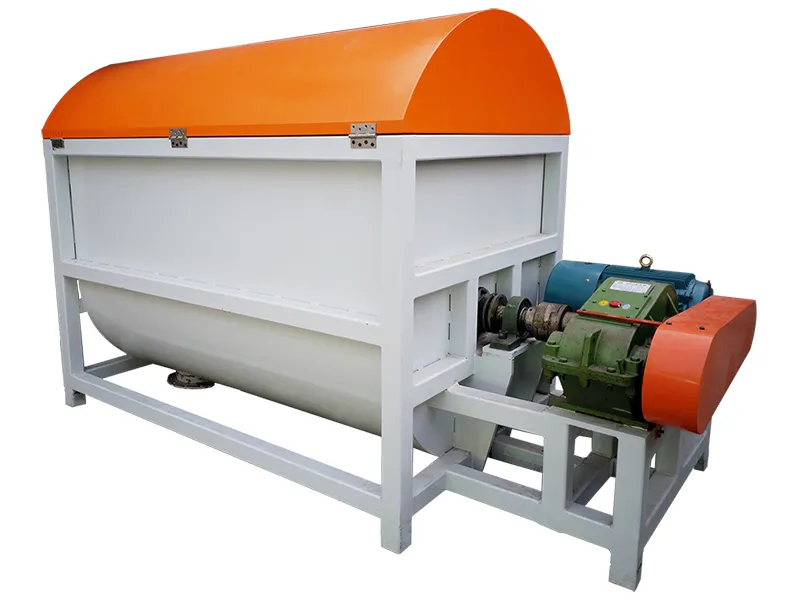

  • Horizontal shaft mixerHorizontal shaft mixer

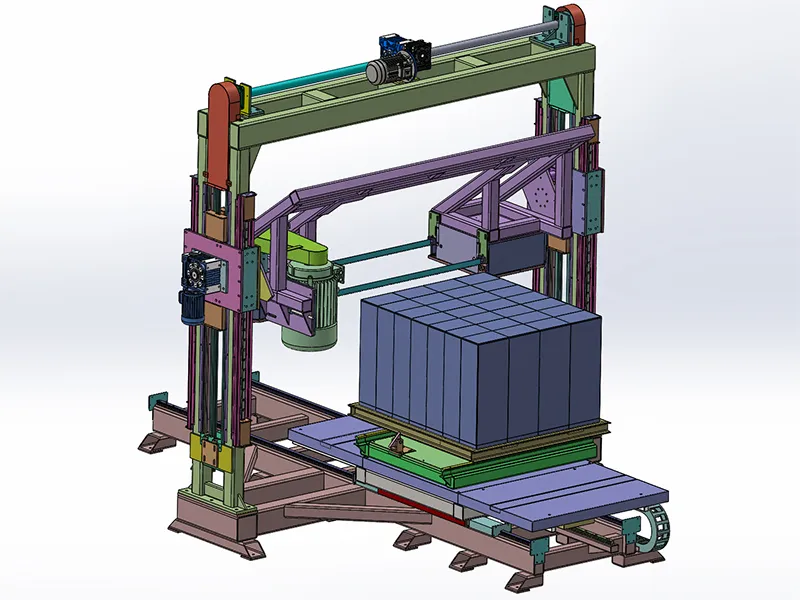

  • Gantry horizontal & vertical concrete cutterGantry horizontal & vertical concrete cutter

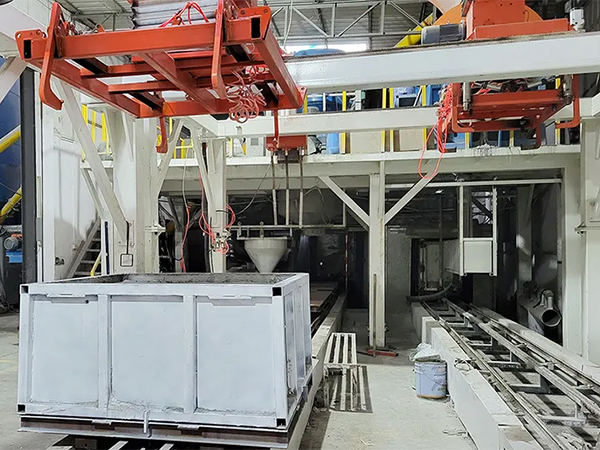

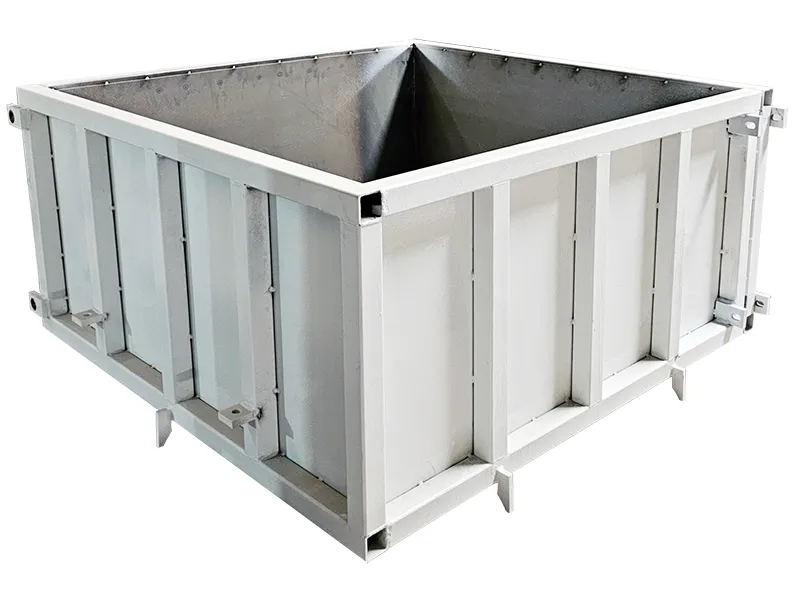

  • Concrete block mouldConcrete block mould

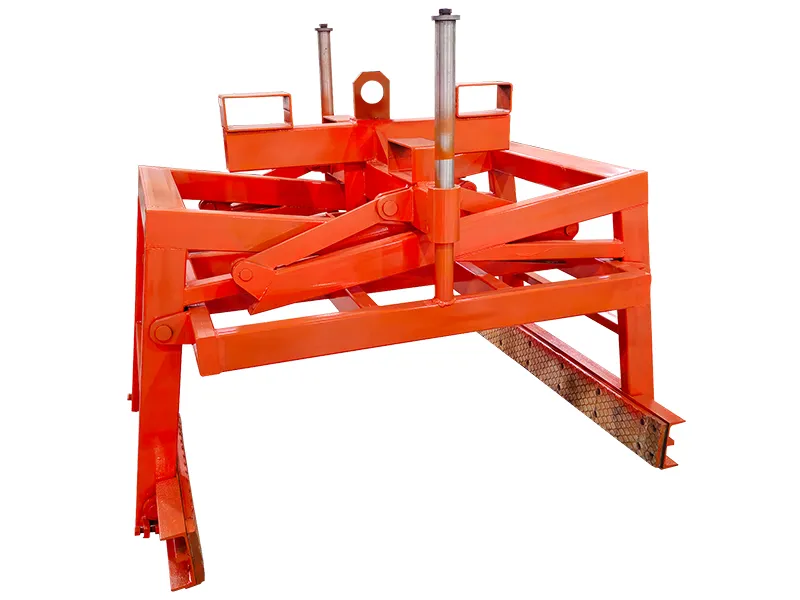

  • Concrete block grab / lifterConcrete block grab / lifter

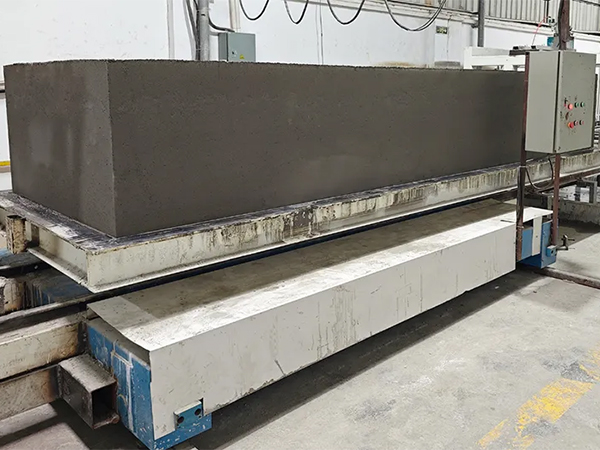

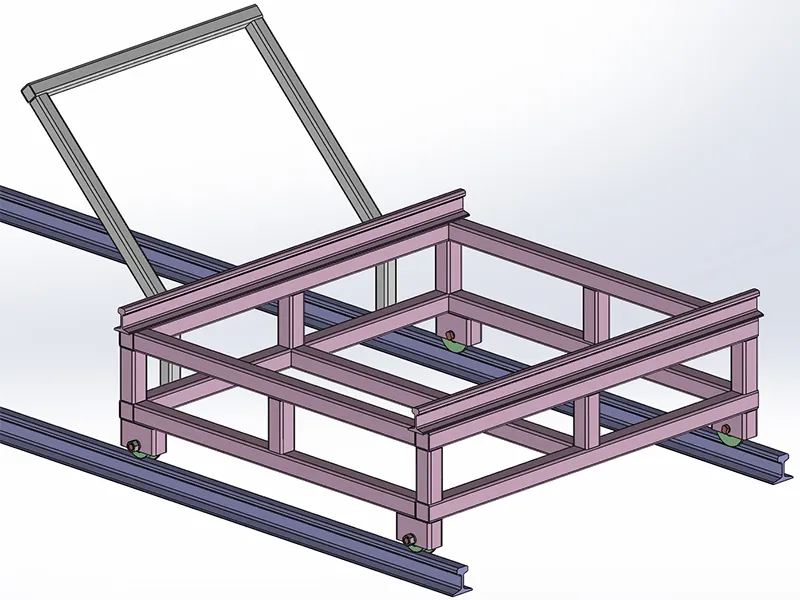

  • Manual rail transfer cartManual rail transfer cart

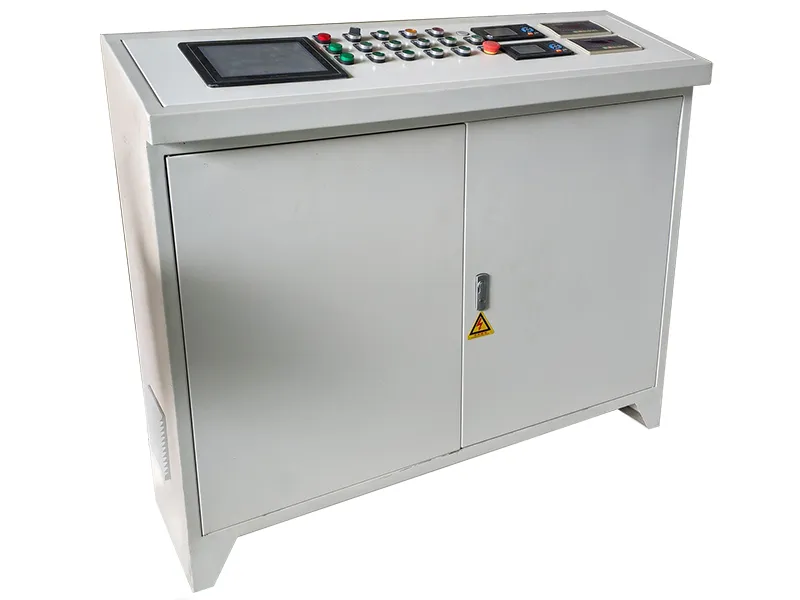

  • PLC control consolePLC control console

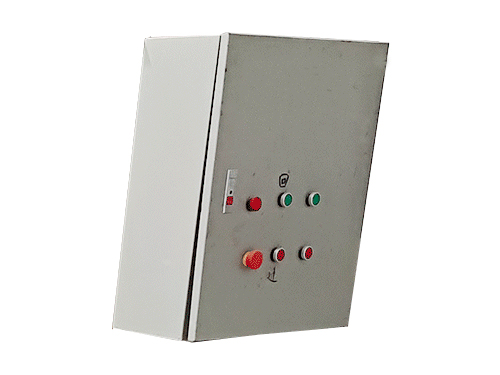

  • Foam generator control panelFoam generator control panel

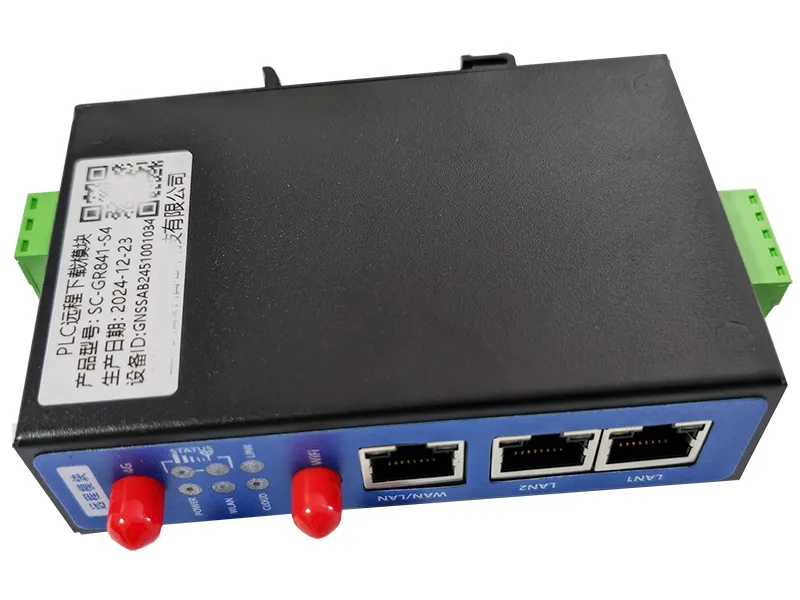

  • Remote control moduleRemote control module
Configuration Model Dimensions (mm) Power per unit (kW) Total power (kW) Quantity of machine
Screw feeder HDSL-001 8000×350×1100 11.00 11.00 1
Belt conveyor HDPDA-001 9000×800×800 2.20 2.20 1
Powder dosing and weighing system HDFL-001 1310×1950 0.55 0.55 1
Dosing hopper HDSS-001 1000×1500 0.55 0.55 1
Water dosing system HDSL-001 1100×1140 0.55 0.55 1
Foam generator HDKWF1-001 1150×750×1140 7.50 7.50 1
Piston air compressor HDKY-001 Length 1.3m (380V) 7.50 7.50 1
Horizontal shaft mixer EPSA-1 2000×1200×1200 22.00 22.00 1
Gantry Horizontal & Vertical Concrete Cutter
(supports top and bottom trimming with rotary vertical cutting)		 HDSXZ-01-01 4600×3750×3800 28.80 28.80 1
Concrete block grab / lifter HDEB2-1 1200×1500×1400     2
Manual rail transfer cart HDBAS-001 1500×1080×40     3
PLC control console HDKZ1-001 1300×1100×400     1
Foam generator control panel HDCB-001 700×500×400     1
Remote control module
(enables data import and remote control functionality)		 HDYC-001 200×150×60     1
Concrete block mould HDCM1-002 1.2m×1.2m×0.62m     1
