Non-Autoclaved Aerated Concrete Block Production Line
Lightweight NAAC blocks manufacturing
Non-Autoclaved Aerated Concrete Block Production Line
Lightweight NAAC blocks manufacturing
The non-autoclaved aerated concrete (NAAC) production process involves using cement as a binder, along with materials like sand, fly ash, stone powder, and industrial waste. Aluminum powder paste acts as the aerating agent, typically mixed with warm water at 40 degrees to form foam. Our technology, enhanced with techniques from Germany's Luca Industries, ensures that our NAAC production lines meet various capacity needs effectively. This process improves the efficiency and quality of non-autoclaved concrete blocks production, providing consistent results.

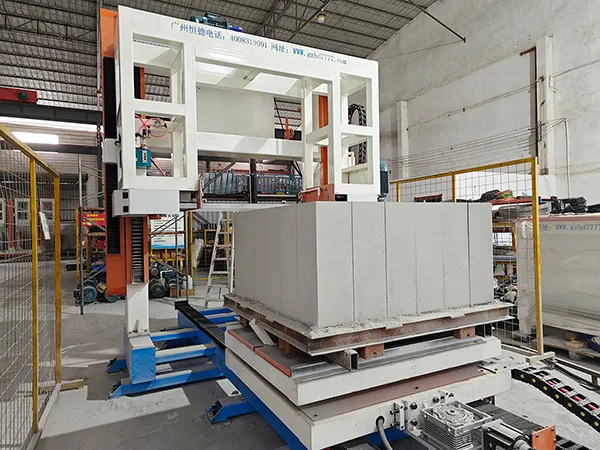

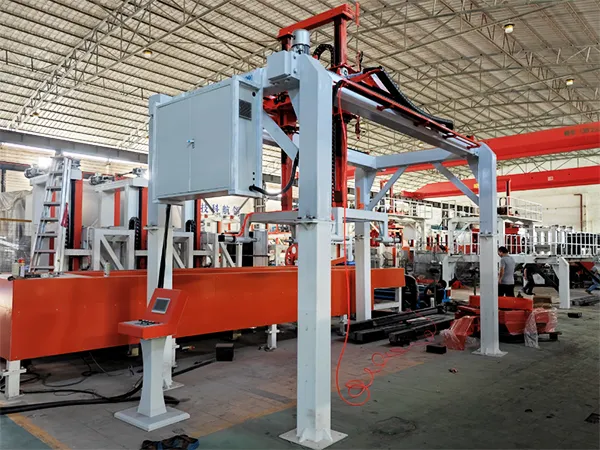

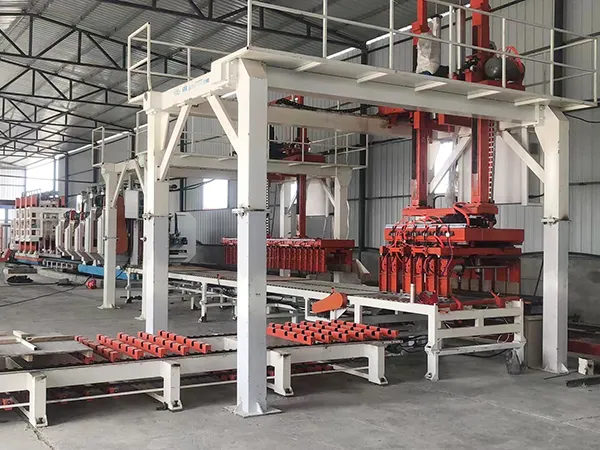

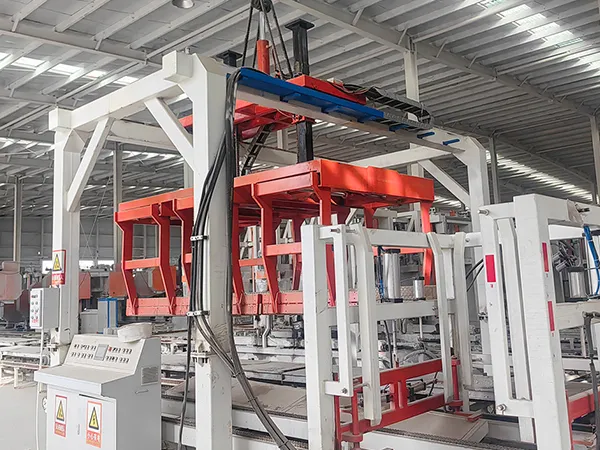

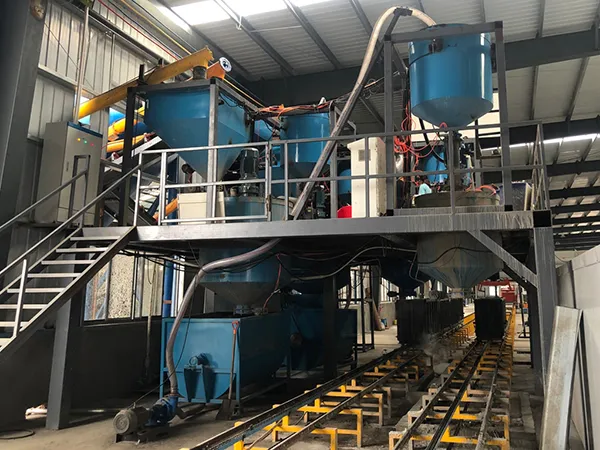

The main components of the non-autoclaved aerated concrete production line include the raw material mixing and dosing station, concrete block moulds, demoulding crane, horizontal and vertical cutting machines, and the concrete clamp lifting and stacking machine. We categorize our NAAC block production lines into small, medium, and large types, with a daily output ranging from 100 to 1000 cubic meters and a power capacityof 200-600kW. We specialize in providing project planning solutions based on clients' equipment requirements and raw material properties.
-
Output: 100-1000m³/day
-
Number of operators: 6-15 person
-
Total area of plant: 5000-20000m²
- Examples
- Specifications
- Configurations
- Projects

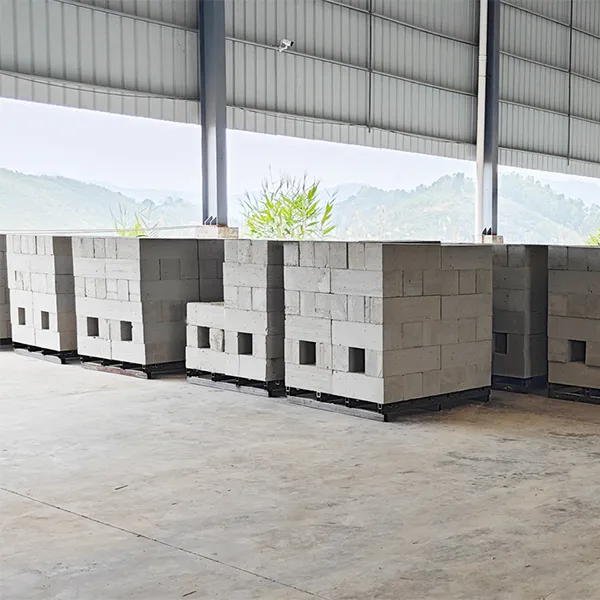

Non-autoclaved aerated concrete (NAAC) blocks, also known as aerated concrete blocks or lightweight blocks. This product meets the Chinese JCT1062-2022 standard and also complies with GOST 25485-2019.
Block size (adjustable)
- 600×300×100mm
- 600×300×150mm
- 600×300×200mm
- 600×200×100mm
- 600×200×200mm
- 600×300×240mm
- 600×350×200mm
Compressive strength: 3.0-7.5MPa
Block density: 500-900kg/m³
| Required production space | Width:20-60m Length:80-150m Height:≥6m |
| Curing area | 2000-8000m² |
| Total power | 200-600kW |
| Voltage | 380V |
| Water consumption | 50-500ton/day (depending production output) |
| Number of operators | 6-15 person |
| Total area of plant | 5000-20000m² |
| Output | 100-1000m³/day |
| Temperature | Room temperature,≥ 0℃ (additional heating is required for below 0℃) |
Note: Based on your choice of production capacity, our experts will provide answers to your questions.
- High efficiency: our moulds deliver high production capacity, require fewer personnel, and reduce operational costs, optimizing overall efficiency.

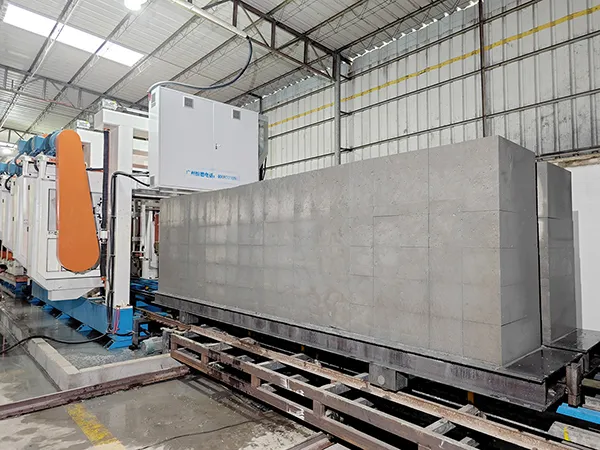

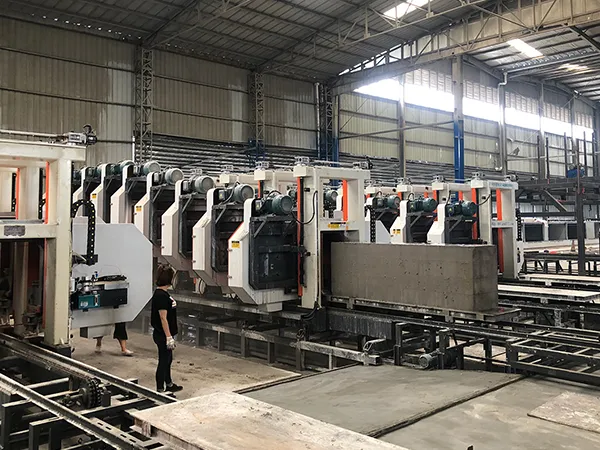

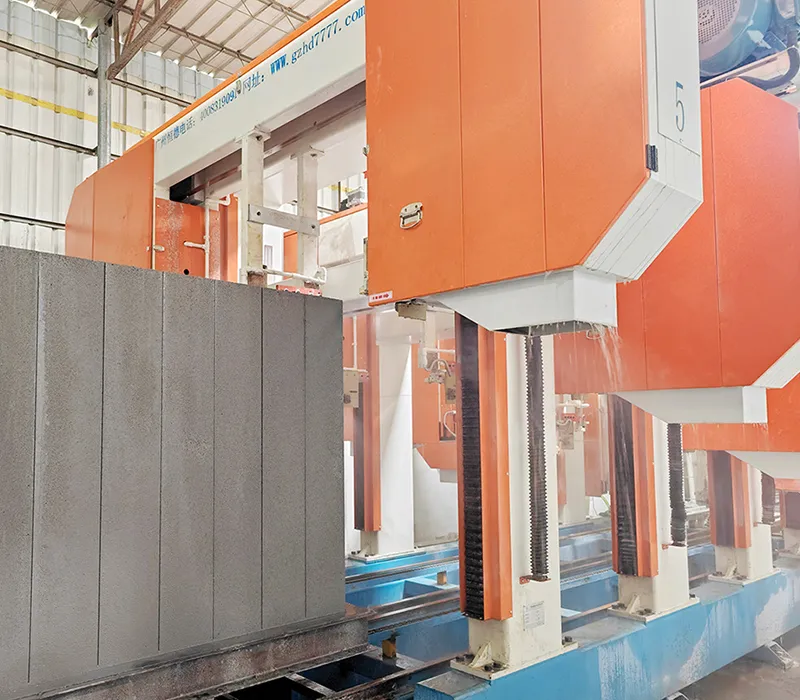

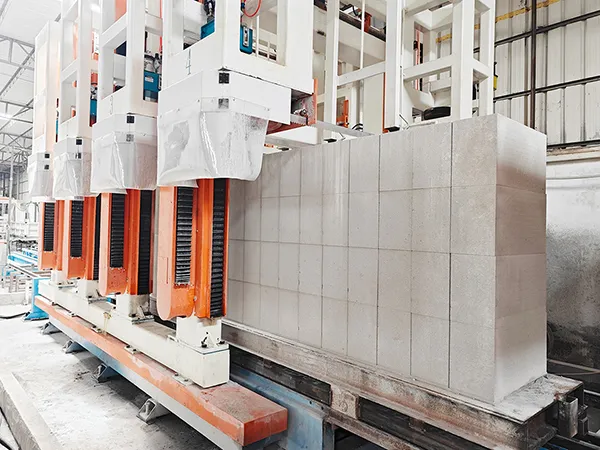

- Precision: high-precision, high-speed rotary band saw cutting, with an error margin of ≤1mm.
- Energy efficiency: equipment has low power consumption and low energy usage, conserving resources.
- Environmental friendliness: low noise and dust-free during the production process.
- Flexibility: production capacity can be freely chosen, and multiple types of production are possible.
- Reliability: experienced expert team at your service.

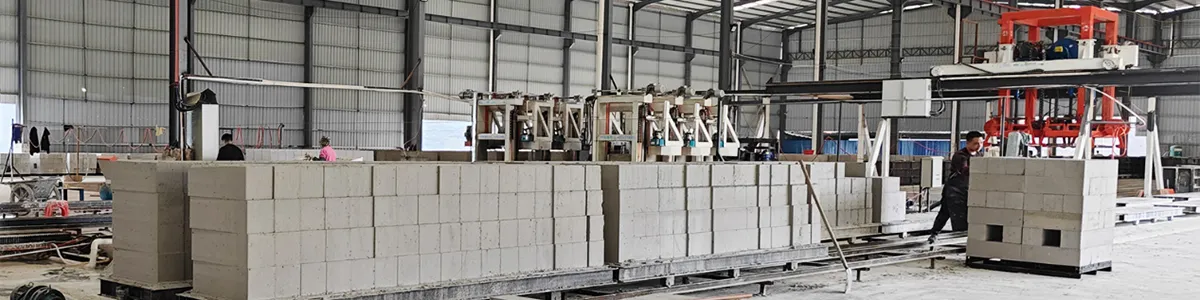

To help you better choose different types of NAAC block manufacturing equipment, we have provided a list of mould types along with pictures taken at our users’ sites.
