Lightweight Concrete Production Solutions for
EPS Foamed Concrete Blocks
We provide lightweight concrete production solutions for EPS foamed concrete blocks, as well as upgrade services for block production lines.

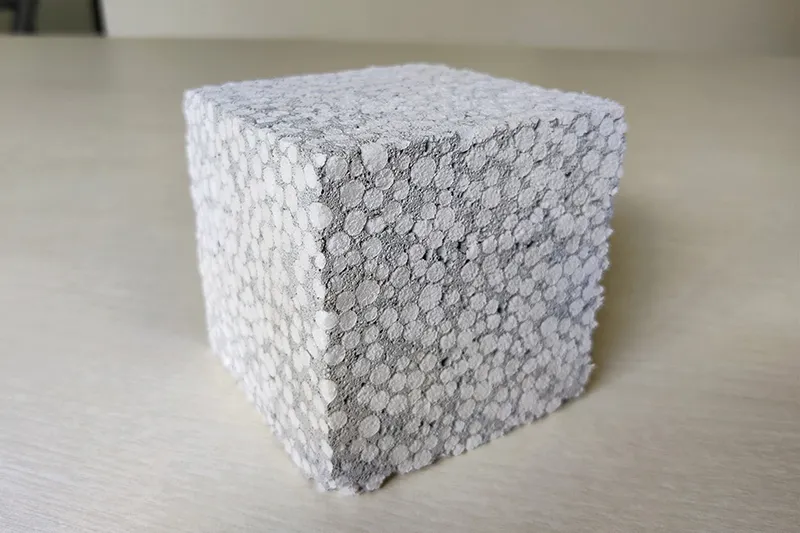

Our concrete block production lines are designed to manufacture EPS self-insulating concrete blocks. These blocks feature built-in insulation through the integration of EPS particles within the main block. By leveraging the natural insulating properties of EPS, these blocks eliminate the need for extra insulation materials, enhancing the construction process and lowering construction costs.
Key Specifications
- Density: 600-900kg/m³
- Compressive strength: 3.5-7.5Mpa
- Block size (The cutting size can be adjusted. For special specifications and shape requirements, do not hesitate to contact us)
Standard size: length 600mm, width 200-350mm, thickness 200-300mm
Custom size: 600×300×100mm, 600×300×150mm, 600×300×200mm, 600×200×100mm, 600×200×200mm, 600×300×240mm, 600×350×200mm
Features

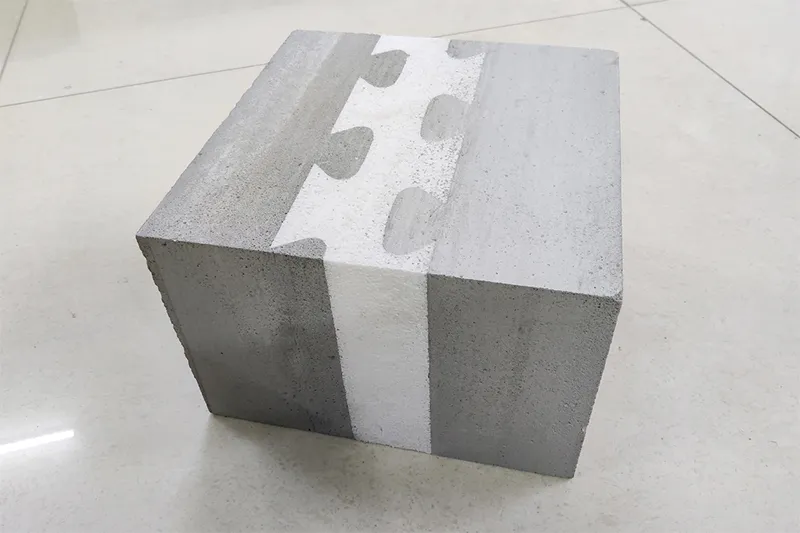

- EPS self-insulating blocks incorporate the insulating properties of polystyrene foam particles and foam concrete, achieving a "two-in-one" insulation and wall solution. This eliminates the need for additional external insulation, preventing common issues such as external insulation layer detachment and cracking.
- Made with EPS foam particles and foam concrete, these blocks have a density of 600-900kg/m³, reducing the overall load on the structure.
- These blocks offer excellent fire resistance.
- With low water absorption, EPS self-insulating blocks minimize issues like wall bulging and cracking, enhancing the longevity of the structure. The product's strength can also be adjusted to meet design requirements.
- The inherent thermal conductivity and thermal inertia of these blocks meet energy-saving standards (over 65% energy saving), eliminating the need for additional external insulation and reducing construction costs.
Applications
- Production of various density EPS composite wall materials
- Comprehensive insulation for floors and roofs in buildings

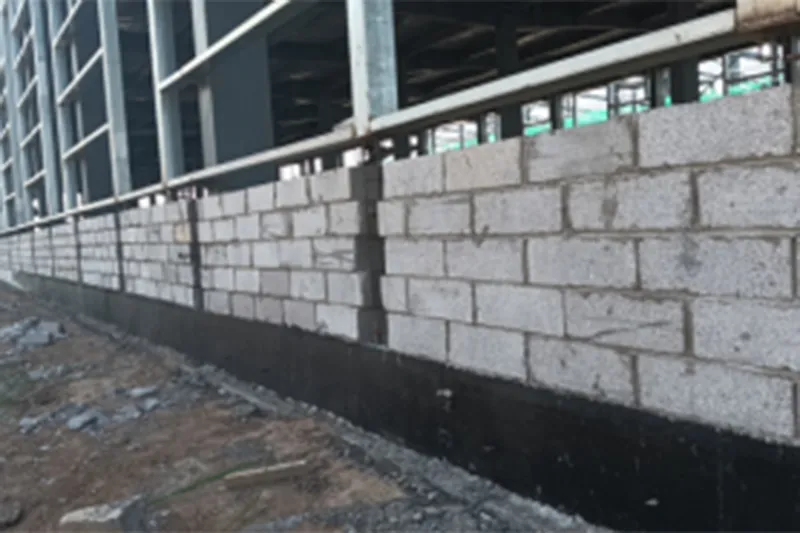

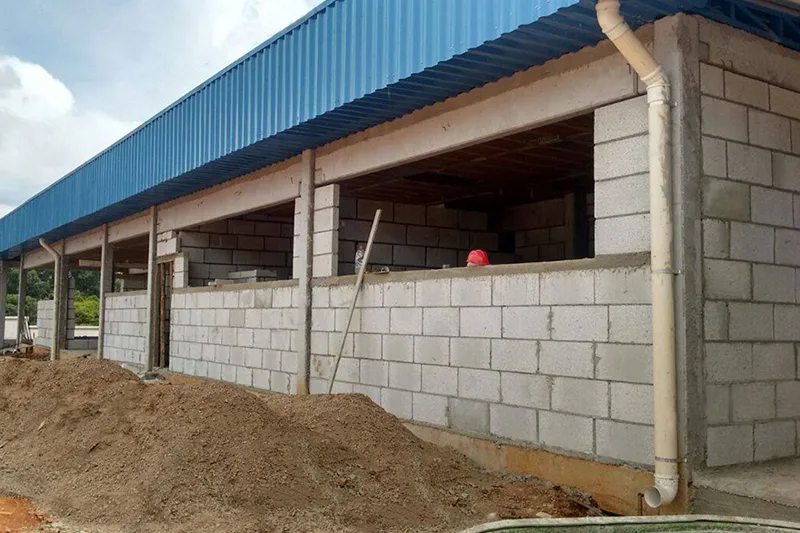

- Filling material for external walls in frame constructions

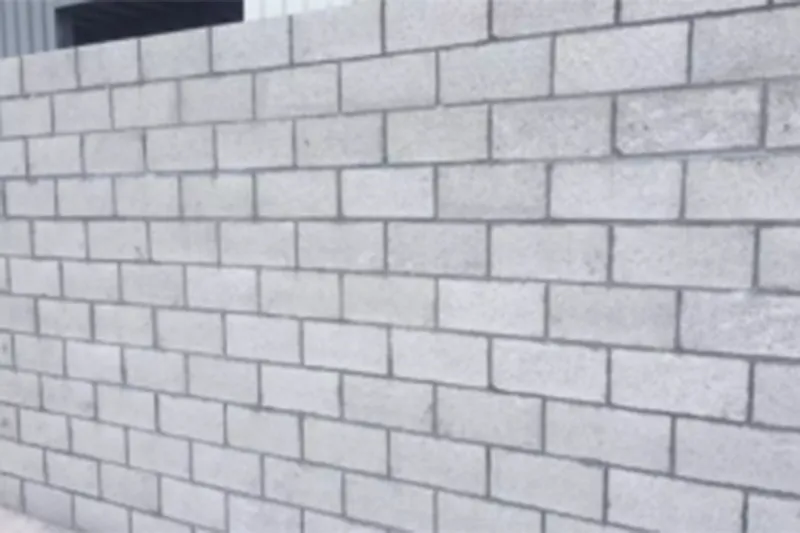

- Insulation for exterior walls and surfaces of heavy structures
- Integrated insulation for external walls and floors

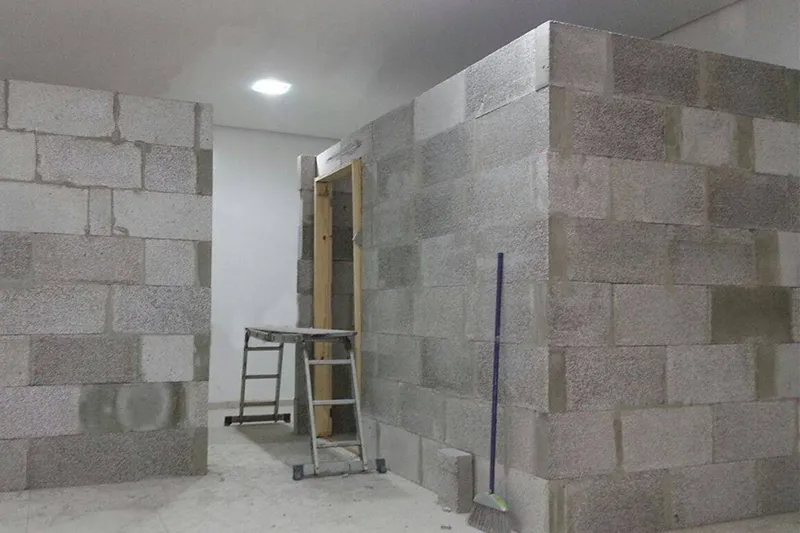

- Monolithic internal and external walls and partitions
- Construction of load-bearing and self-supporting components (e.g., wall blocks, internal partition blocks)
Recommended Concrete Block Production Line
-

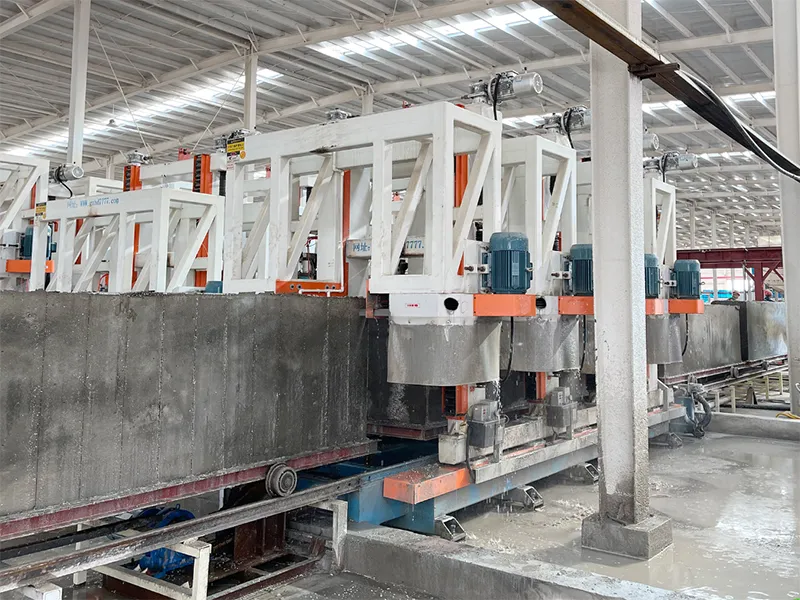

- EPS Foamed Concrete Block Production Line The main equipment of the production line include the raw material mixing & dosing station, concrete block moulds, demoulding crane, horizontal and vertical cutting machines, and the concrete clamp lifting and stacking machine. We categorize the foam concrete block production line into small, medium, and large categories, with a daily output of 100-1000m³ and power distribution of 200-600kW. We specialize in providing project planning solutions based on clients' equipment requirements and raw material properties. Explore More
